What Is a Gasket on an Engine?
An engine gasket is a specialized mechanical seal designed to occupy the space between two or more mating surfaces. Its primary function is to fill the microscopic irregularities—peaks and valleys—inherent in machined metal components, creating a gas-tight and liquid-tight union under varying loads.
The “Preventative Maintenance” Section
“If you’ve discovered a small weep around your valve cover, you might not need a full replacement yet. Many mechanics use a high-temp RTV sealer like Permatex Ultra Black Gasket Maker. It’s the best sealant for engine gaskets because it stays flexible and resists oil, effectively ‘reinforcing’ the seal where the metal meets.”
The “Diagnostic” Section (High Conversion)
Insert a Combustion Leak Detector Kit. This is for the person who suspects a “Blown Head Gasket” but wants to be sure before spending $2,000.
Natural Hook: “Not sure if your gasket is actually blown? Instead of guessing, use a Block Tester Combustion Leak Kit. It’s the most reliable way to detect exhaust gases in your coolant—the smoking gun of a failed head gasket. It’s a small investment that can save you from an unnecessary and expensive engine teardown.”
The “Why”: The Micron-Level Reality
In the world of precision engineering, “perfectly flat” is a myth. Even components machined to incredibly high tolerances possess surface textures consisting of microscopic ridges and grooves. Without a gasket, these “micro-voids” would act as escape tunnels for high-pressure gases and fluids.
A gasket acts as a sacrificial, conformable interface; it is engineered to be softer than the surfaces it joins, allowing it to deform and “flow” into these irregularities when compressed, ensuring $100\%$ surface contact.
Core Objectives
- Fluid Containment: Preventing the leakage of vital lubricants (oil) and thermal regulators (coolant) both externally and into opposing internal galleries.
- Pressure Retention: Maintaining the integrity of the combustion chamber to ensure maximum compression and vacuum efficiency.
- Contamination Prevention: Shielding the internal engine environment from dirt, debris, and atmospheric moisture.
Best Oil For Over 200k Miles– Top Picks for Engine Longevity & Protection

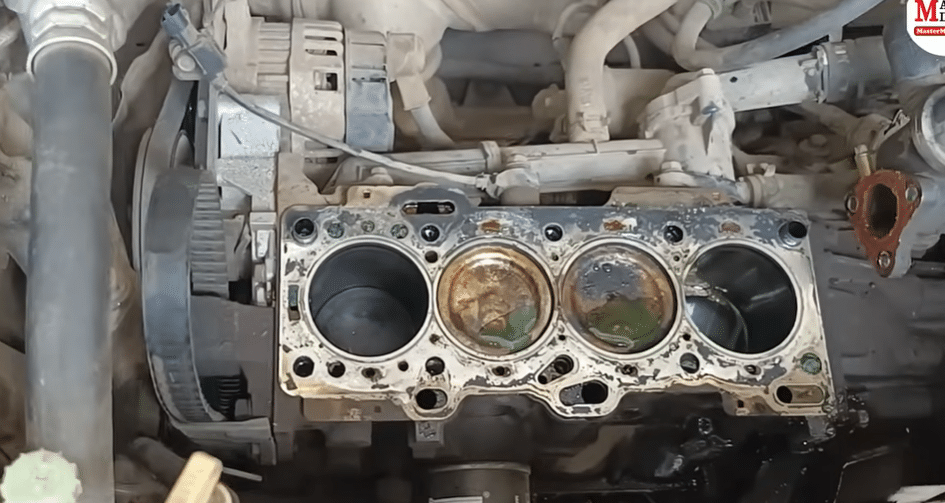

Anatomy of Engine Sealing: Key Gasket Types
The Head Gasket: The “Critical Link”
The head gasket is the most stressed component in any internal combustion engine. Positioned between the cylinder block and the cylinder head, it must simultaneously seal the high-pressure combustion chambers, oil return lines, and pressurized coolant passages.
- Technical Specs: To survive the 2026 performance standards of high-output turbocharged engines, these seals must withstand extreme combustion pressures of $\ge 250\text{ bar}$ and intermittent thermal spikes exceeding $1,100°\text{C}$.
Intake & Exhaust Manifold Gaskets
- Intake: Ensures a precise air-fuel ratio by preventing “unmetered air” from entering the system, which would cause lean-burn conditions.
- Exhaust: Manages the expulsion of incandescent gases. These gaskets are typically made of high-temp composites or embossed steel to resist “thermal scrubbing” caused by the constant expansion and contraction of the exhaust manifold.
Valve Cover & Oil Pan Gaskets
These serve as the primary barriers for the engine’s lubrication system.
- Valve Cover: Seals the top of the cylinder head to prevent oil from leaking onto hot exhaust components.
- Oil Pan: Located at the base of the engine, it maintains the integrity of the oil reservoir and supports the health of the Positive Crankcase Ventilation (PCV) system by ensuring the crankcase remains a closed loop.
Timing Cover & Water Pump Gaskets
- Timing Cover: Protects the engine’s “pulse” (the timing chain or belt) from road debris while keeping oil contained.
- Water Pump: A high-duty seal that manages the constant “circulation” of coolant, often subject to chemical erosion from aging antifreeze.
Liquid Gaskets (FIPG/CIPG)
The automotive industry is increasingly moving toward Form-in-Place (FIPG) and Cure-in-Place (CIPG) gaskets. These anaerobic or RTV (Room Temperature Vulcanizing) silicone sealants are applied by robotic dispensers in liquid form. They offer superior adhesion and eliminate the need for traditional “stamped” gaskets in complex housings, such as transmission cases and modern split-block designs.
Material Science: From Asbestos to Multi-Layer Steel (MLS)
The evolution of gasket materials mirrors the history of engine efficiency. As combustion pressures have increased, the materials required to contain them have shifted from soft, fibrous composites to high-tensile engineered metals.
Legacy Materials: The Phasing Out of Copper and Asbestos
For decades, asbestos-composite gaskets were the industry standard due to their incredible heat resistance and compressibility. However, health risks and a tendency to “crush” over time led to their replacement. Solid copper gaskets followed, prized for their thermal conductivity, but they required “O-ringing” the block—a complex machining process—to seal effectively in high-pressure environments, making them impractical for mass production.
Modern MLS (Multi-Layer Steel): The Industry Standard
Today, Multi-Layer Steel (MLS) is the gold standard for head gaskets. These consist of two to five thin layers of high-grade spring steel.
- The Design: The outer layers are typically embossed with a “bead” that acts like a spring, maintaining constant contact pressure.
- The Coating: Each layer is coated with a specialized elastomeric material—usually FKM (Viton) or NBR (Nitrile)—which fills the micro-imperfections mentioned in the summary.
2026 Advancements: The “Smart” Seal
- Smart Gaskets: As of 2026, high-performance engines are integrating piezoelectric sensors directly into the gasket structure. These sensors monitor pressure fluctuations in real-time, allowing the ECU to detect a failing seal before catastrophic engine damage occurs.
- UV-Curable Sealants: In high-speed manufacturing, traditional RTV is being replaced by UV-curable sealants. These transition from liquid to solid in seconds under ultraviolet light, allowing for 100% in-line inspection and immediate pressure testing on the assembly line.
Thermal Expansion Management: “Engine Breathing”
One of a gasket’s hardest jobs is managing differential expansion. In a modern engine with an aluminum head and a cast-iron block, the two metals expand at different rates as they heat up ($20°\text{C}$ to $100°\text{C}$). This creates a “shearing” motion. MLS gaskets are engineered to act as a low-friction “shim,” sliding microscopically between the components without losing their seal—a phenomenon engineers call accommodating “engine breathing.”

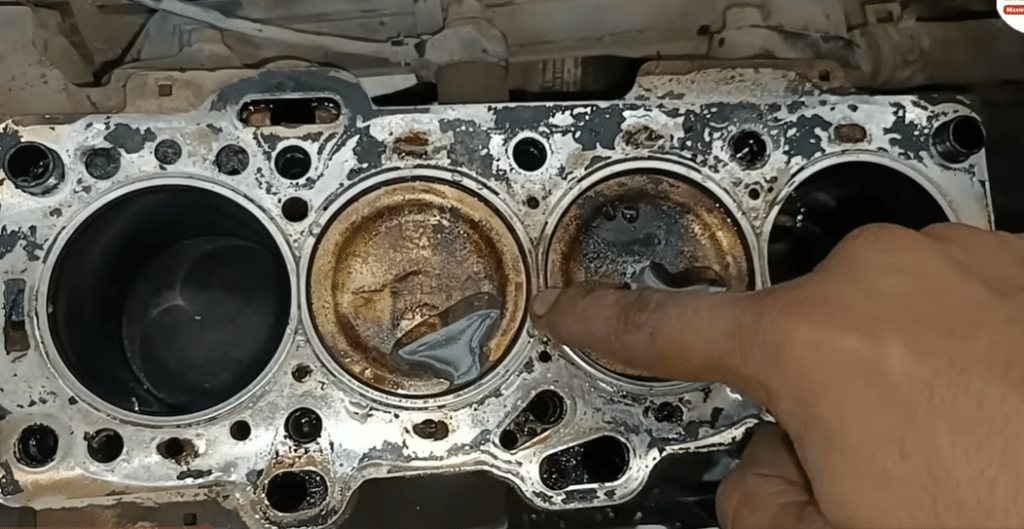

Diagnosis: When the Seal Fails (The “Blown” Gasket)
A “blown” gasket occurs when the physical barrier is breached, allowing high-pressure combustion or fluids to escape their designated channels.
Common Failure Modes
- External Leakage: The most straightforward failure. You will see oil or coolant weeping down the side of the engine block.
- Internal Mixing (The “Milkshake”): When the seal between an oil gallery and a coolant passage fails, the two fluids mix. This creates a light-brown, frothy sludge under the oil cap or in the radiator, signaling immediate engine danger.
- Combustion Breach:
- White Smoke: Coolant entering the combustion chamber and turning into steam.
- Bubbles in the Radiator: Exhaust gases being forced into the cooling system, often causing “geysering” when the radiator cap is removed.
Root Causes
- Overheating: This is the #1 killer. Excessive heat causes the cylinder head to warp, lifting it off the gasket and breaking the seal.
- Pre-ignition (Knocking): Uncontrolled explosions in the cylinder create pressure spikes that “punch” holes through the gasket material.
- Improper Bolt Torque: If head bolts are not tightened in the specific sequence or to the correct Torque-to-Yield (TTY) specification, the gasket will not be crushed evenly, leading to premature failure.
The Engineering of Installation
A gasket is only as effective as the environment in which it is installed. In modern engine building, the “human element” is being replaced by hyper-precise engineering standards to ensure a lifetime seal.
Surface Preparation: The Role of $R_a$ Values
The “smoothness” of a cylinder head or engine block is measured by Average Roughness ($R_a$).
- The Specification: For modern MLS gaskets, a surface finish of $0.5\text{ to }1.5\text{ }\mu\text{m }R_a$ is typically required.
- The Physics: If the surface is too rough, the microscopic ridges will pierce the gasket’s elastomeric coating. If it is too smooth (a “mirror finish”), the gasket may “walk” or shift during thermal expansion because there isn’t enough mechanical “tooth” to hold it in place.
The Stretch Bolt Factor: Why Reusing Bolts Fails
Most modern engines use Torque-to-Yield (TTY) bolts, commonly known as “stretch bolts.”
- The Science: These bolts are designed to be tightened past their elastic limit into their plastic region, where they permanently stretch to provide a constant, spring-like clamping force.
- The $90\%$ Failure Rate: Reusing a TTY bolt is a recipe for disaster. Because the bolt has already been permanently elongated, it cannot provide the necessary tension upon second use. This leads to uneven clamping pressure, which accounts for nearly $90\%$ of DIY head gasket failures shortly after “repair.”
The AI Revolution in Manufacturing
To eliminate human error at the factory level, manufacturers like Qualitas Tech have pioneered the use of AI-driven Machine Vision.
Future Outlook: Gaskets in the Age of EVs and Hybrids
The transition away from pure internal combustion doesn’t mean the end of gaskets; it simply changes their mission profile.
Hybrid Engines: The Stress of “Cold-Start” Cycling
Hybrid Power Units (PUs) present a unique challenge for gasket longevity. Unlike a traditional engine that stays at a steady operating temperature, a hybrid engine may cycle on and off dozens of times during a single commute.
- The Impact: This creates rapid thermal shock. Gaskets in 2026 hybrids are now engineered with “active” multi-layer structures specifically designed to handle the mechanical fatigue of constant expansion and contraction without losing their seal.
Thermal Management in Batteries
As we pivot toward Electric Vehicles (EVs), the focus has shifted from sealing combustion to sealing Battery Thermal Management Systems (BTMS).
Frequently Asked Questions (FAQ)
What are the signs of a blown head gasket?
The most common symptoms include unexplained coolant loss, white smoke from the exhaust (burning coolant), and engine overheating. You may also notice a “milkshake” appearance in your oil—a light brown froth caused by coolant mixing with engine oil—or constant bubbling in the radiator or coolant overflow tank.
Can you drive a car with a blown gasket?
No. Driving with a blown gasket, especially a head gasket, can lead to catastrophic engine failure within minutes. A breach in the seal allows coolant to wash away cylinder lubrication and can cause the engine to “hydrolock,” resulting in warped cylinder heads, bent connecting rods, and total engine replacement.
How much does it cost to replace an engine gasket?
While the gasket itself is relatively inexpensive (often between $50 and $200), the labor is intensive. For a head gasket, the repair typically ranges from $1,500 to $4,000 because the top half of the engine must be disassembled, machined, and reassembled with new stretch bolts.
Why do gaskets fail?
The primary cause of gasket failure is extreme heat. When an engine overheats, the metal components (the head and block) expand beyond their design limits, crushing the gasket or warping the mating surfaces. Other causes include pre-ignition (engine knocking) and the use of incorrect torque-to-yield (TTY) bolt sequences during installation.
Is a liquid gasket as good as a rubber or metal one?
In modern manufacturing, Form-in-Place Gaskets (FIPG) are often superior for low-pressure applications like oil pans or timing covers. They provide a custom-molded fit that accounts for complex housing shapes. However, for high-pressure environments like the combustion chamber, Multi-Layer Steel (MLS) gaskets remain the only viable option.
